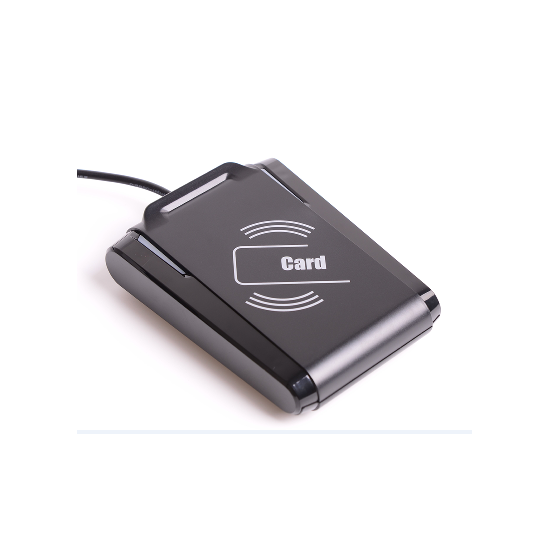

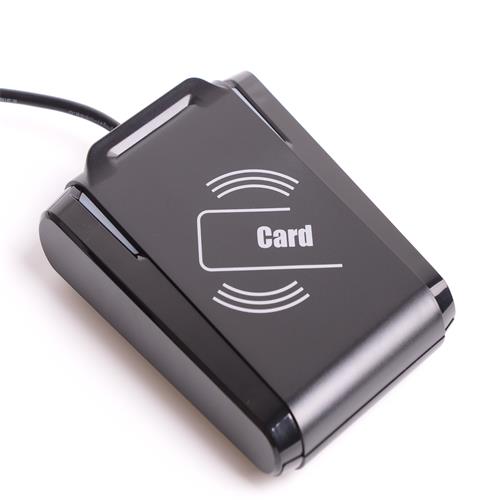

Long Range Proximity 125KHZ T5577 RFID ID Card Tag Reader

Improve efficiency and productivity with our RFID readers. Explore now. Meihe RFID readers are designed specifically for your enterprise and environment. Best Encoding Accuracy. Industrial durability. Operational Efficiency. User-friendly features. Types: Retail, Healthcare.

item no.:
125KHZ RFID reader
Payment:
T/T,Western Union, PayPal
product origin:
China
Color:
Customized
shipping port:
Shenzhen,Hongkong
Lead Time:
7-8 working days

inquiry now

product details

G-series 125KHz Smart Card Reader

Host Interface

Interface

USB 2.0 Full Speed Device (HID)or High Speed RS232 (9600-115200bps)

Power Source

From USB port

Supported Operating Systems

Windows reg; XP, Windows reg; 7, Windows reg; 8.1, Windows reg; 10, Linux reg;, Android4.0 above

Contactless Smart Card Interface(125KHz)

Support the card type

Temic 5567/5577 read/write, EM 4001 read only

Operating Distance

Up to 40mm

Built-in Peripherals

Buzzer

Monotone

LED Status Indicators

2 LED (green, blue)

Physical Specifications

Dimensions

125mm (L) x 95mm (W) x 28mm (H)

Weight

180g

Operating Conditions

Temperature

-10°C – 60°C

Humidity

10% to 90%, non-condensing
