Home >RFID Inlay & Prelams >125KHZ LF PVC Prelam WIth A4 Size

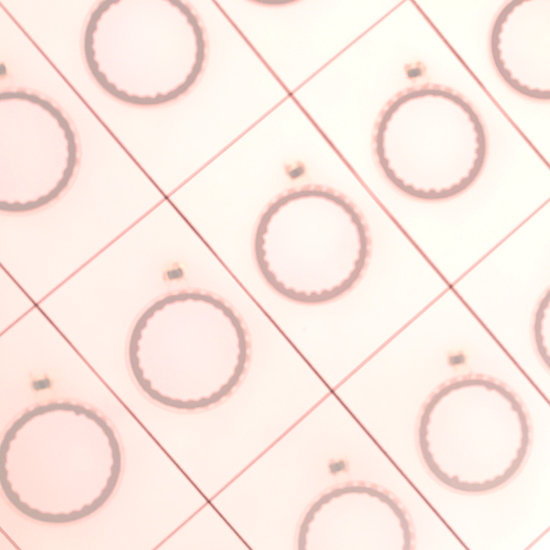

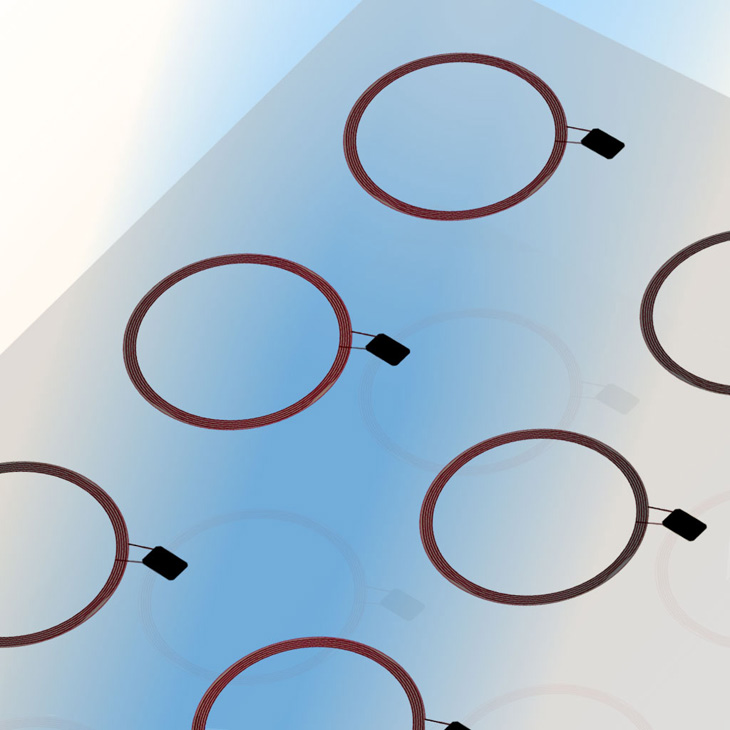

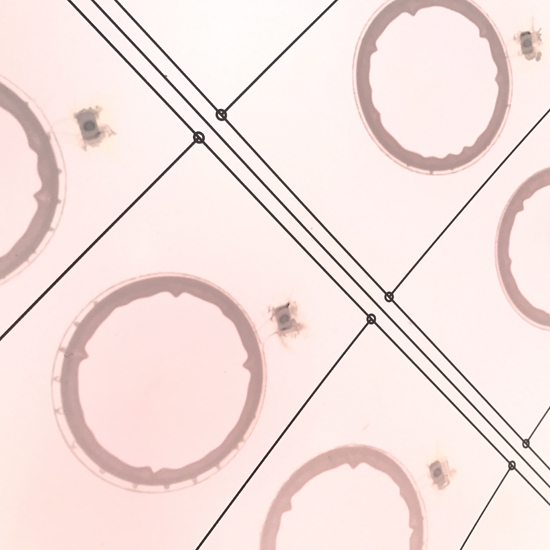

LF Inlay Sheet
LF Inlay Sheet LF Inlay Sheet LF Inlay Sheet

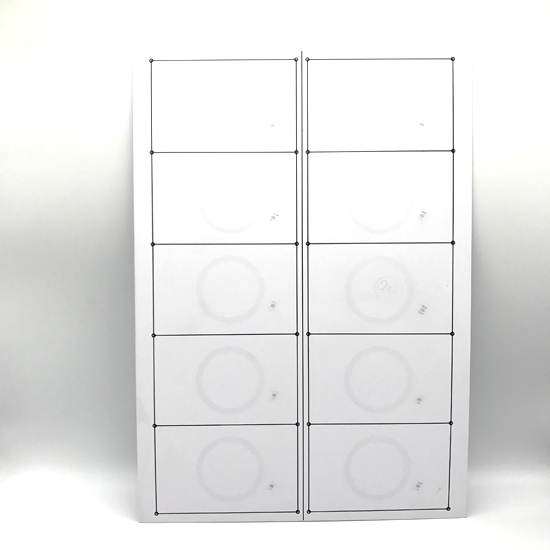

125KHZ LF PVC Prelam WIth A4 Size

Prelaminated inlay LF is suitable for use in the production of ISO standard cards. Meihe uses a proprietary manufacturing process to produce its prelaminated inlays,quality can ba assured.

  • item no.:

    125KHZ LF PVC Prelam WIth A4 Size

  • Payment:

    T/T, Western Union,Paypal

  • product origin:

    Shenzhen, China

  • Color:

    custom color

  • shipping port:

    Shenzhen, HongKong

  • Lead Time:

    7-8 work days
inquiry now

product details

Product Name:125KHZ LF PVC Prelam WIth A4 Size


Description

Prelaminated inlay LF is suitable for use in the production of ISO standard cards. Meihe uses a proprietary manufacturing process to produce its prelaminated inlays.


Specification
1.Operating Frequency: LF 125KHz,
2.Chip IC: EM4200,TK4100,T5577,T5577 Compatible
3.Protocol: ISO1443,ISO15693,ISO18000
4.Material: PVC/PET
5.Dimension: 310mm*468mm,Max size 520mm*420mm,A4 210mm*297mm
6.Layout: 3*7,5*5,3*8,4*8,4*6,2*5,2*4, or any customization of CR80 card or any unit antenna
7.Thickness: HF: normal 0.45mm, 0.5mm,min 0.3mm
                    LF: normal 0.6mm,min 0.5mm
                    UHF: 0.6mm,0.5mm
8.Antenna: HF:air antenna,altrasonic embeding or air etching
                LF:air antenna or altrasonic embeding
                UHF:AL etching
9.Bonding: LF: wire bonding
                 HF:FUDAN,ULTRALIGHT,ICODE SLI
                 UHF: ALIEN, H3
10.Read range: depands on the reader and the chip
11.Working temperature: -25℃~55℃
12.Storage temperature: -25℃~65℃

Production Picture

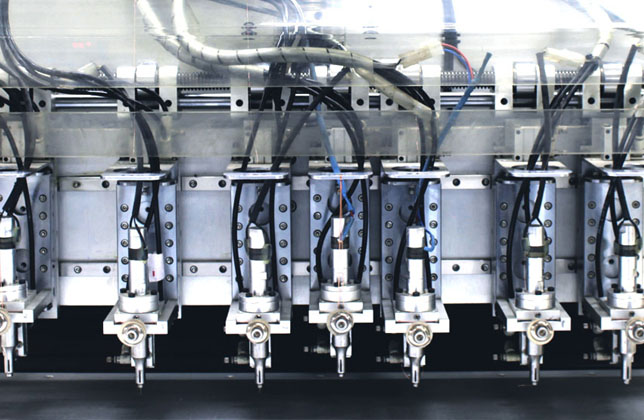

Automatic RFID Card Manufacturing Process
