Product Description

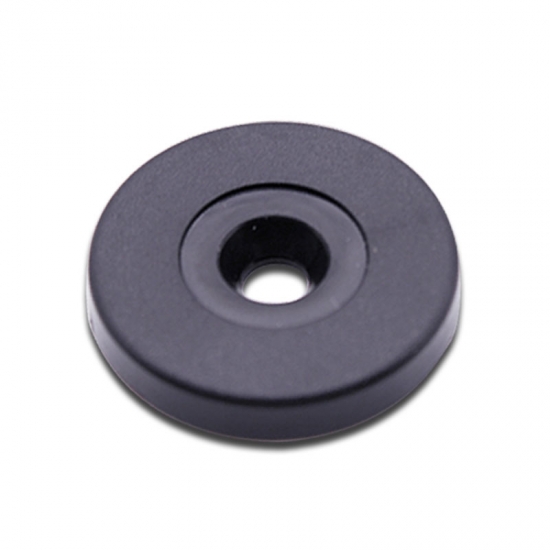

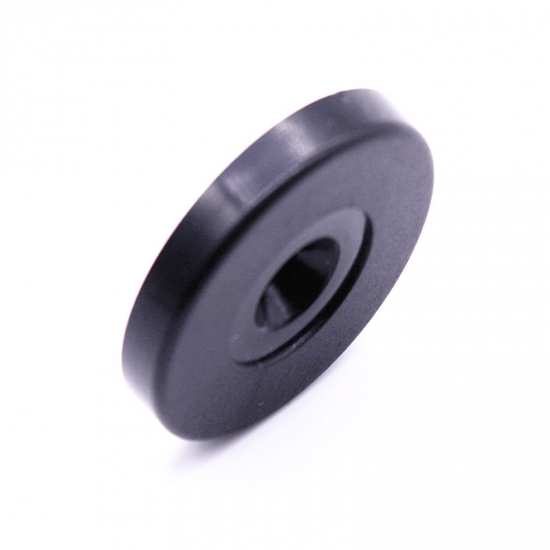

The Coin Tag is designed as a tag for The warehouse managerment, and property tracking, it can be
install on the pallet, the cartons, the machine etc. To handle harsh warehouse/ factory environment,
the tag is optional with filling epoxy technics, it would made the tag complete water/ oil proof.
The tag is also optional with anti-metal layer to mount and working on metal surface.
The tag are available with a broad range of RFID technology, from low frequency 125KHz unique, Atmel T5567, Hitag and high frequency 13.56MHz, MIFARE, I CODE SLI etc, thus providing an optimal solution
for different RFID applications.
RFIDMH accept the OEM manufacturing of the tag, and we provide our partners the different customization technics on the tag.
Key Features
1. Humidity Resistance

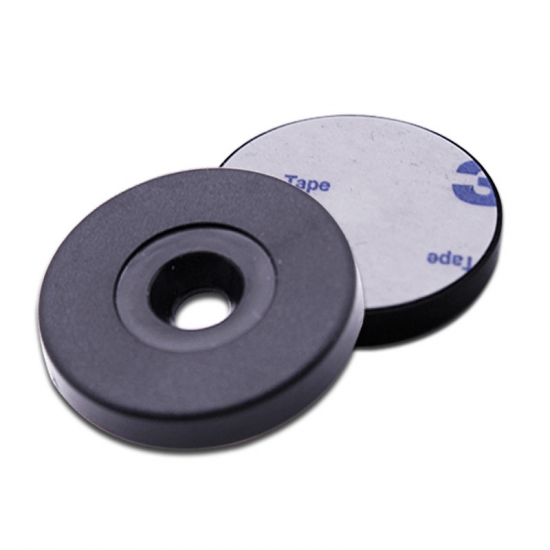

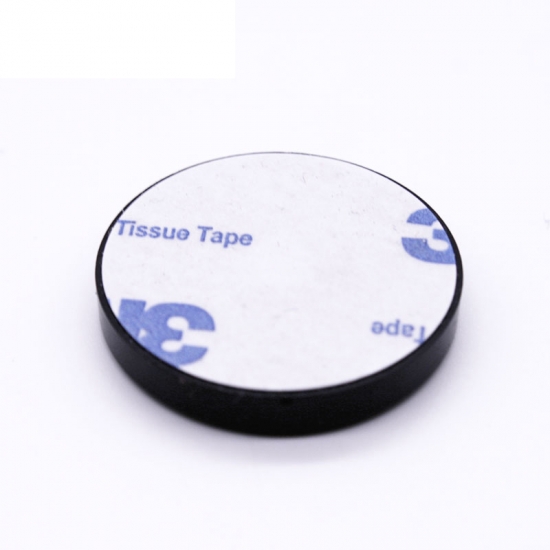

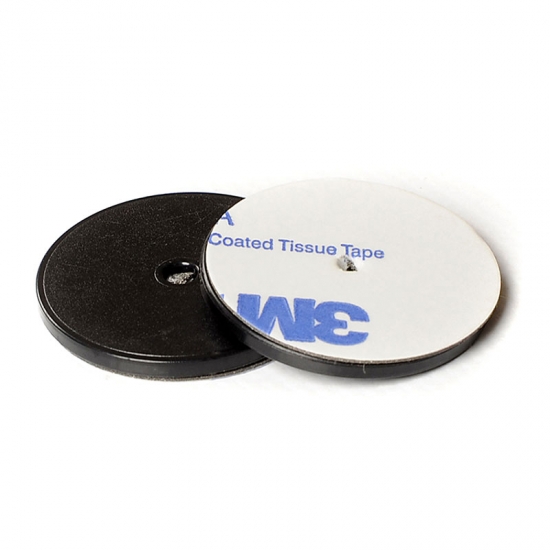

2. Possibility of central hole or adhesive layer
3. Personalized by full color printing with logo
Material :ABS, Adhesive optional, Epoxy filled optional, Metal readable optional
Frequency: LF, HF
Standard: ISO14443A & ISO15693
Dimension:Dia:30mm, Hole:4mm, Thickness: 2.8mm
Dia:30mm, Hole:5mm, Thickness: 5mm
Dia: 40mm, Hole: 5mm, Thickness:4mm
Dia: 50mm, Hole: 5mm, Thickness:8mm
Color :Default color is white and black, Customization is also OK
Feature:Waterproof, Shockproof
Optional Crafts :Silk screen printing, Laser engraved number, Epoxy, 3M adhesive, etc.
Humidity Resistance Suitable for indoor or outdoor use
Applications: Property management, Patrol system, Metal products management, etc.
gt; Property Management
gt; Patrol System
gt; Metal Products Management
gt; Asset Tracking
gt; etc.
| We can support more: |
| - Ability to Design different RFID antenna, in different RF protocol, and frequency. |
| - Research and design different encapsulation for special environments. |
| - Data encoding and encryption options. |
| - Transponder design base on correspond with customer reader. |
| - Individual process. |
